Real-time Monitoring and Analytics

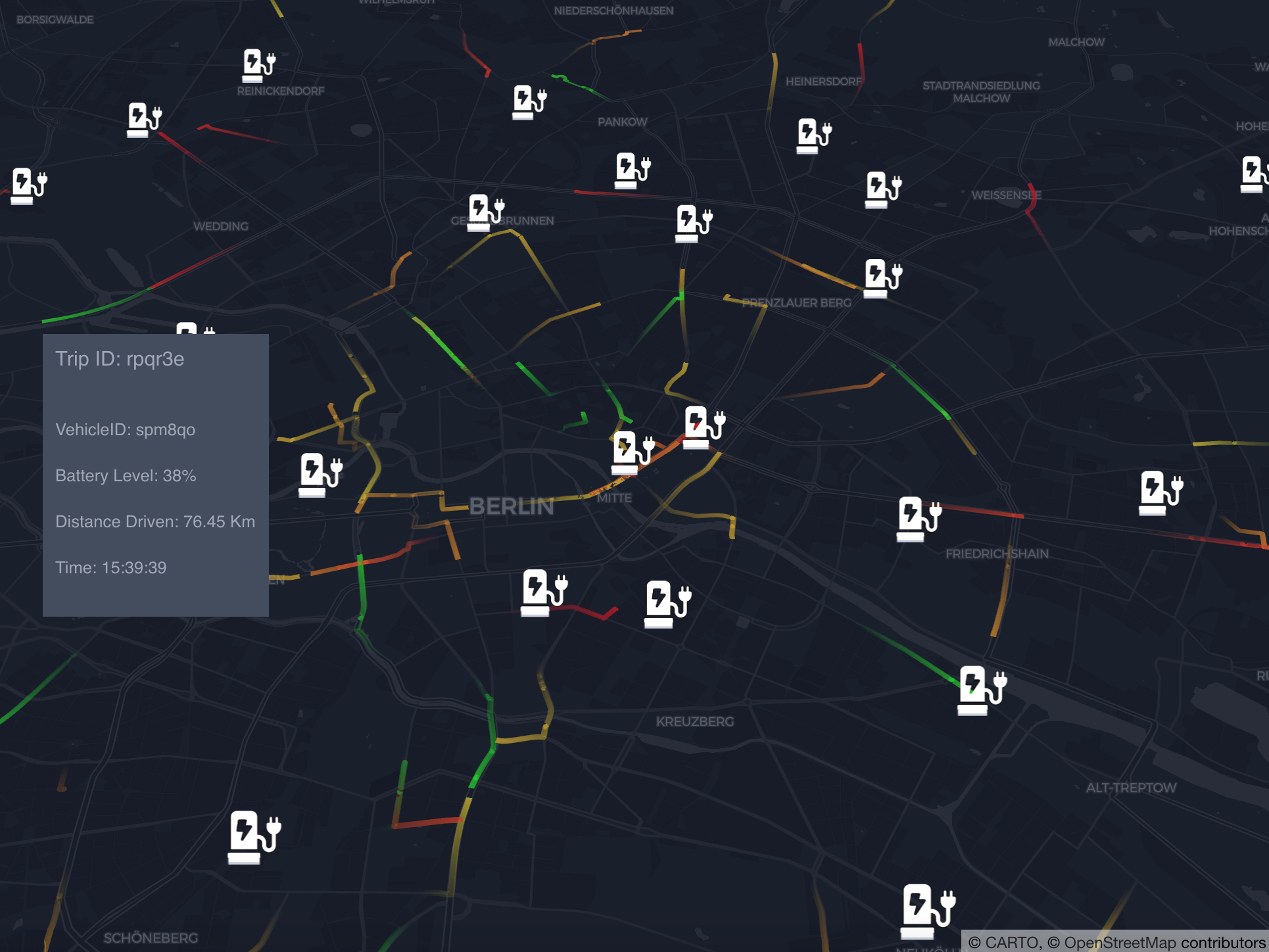

With this use case, we demonstrate how Quick can be used to process data streams and consume the results to build live dashboards. For that, we consider the example of a car-sharing company. Their fleet of cars drives around the city. All of them emit statuses that, among others, include the trip’s and vehicle’s ids as well as the current position and car’s battery level. Our dashboard provides insights into the current status of all cars as well as details for single trips.

View the demo

Apache Kafka & Data Processing

void buildTopology(StreamsBuilder builder) {
    builder.stream("status")
            .groupBy((key, status) -> status.getTripId())
            .aggregate(Trip::new, this::aggregateTrip)
            .toStream()
            .to("trip");
}

Trip aggregateTrip(String tripId, Status newStatus, Trip trip) {
    List route = trip.getRoute();
    // first time we see this trip id
    if (route == null) {
        trip.setId(tripId);
        trip.setVehicleId(newStatus.getVehicleId());
        route = new ArrayList<>();
        trip.setRoute(route);
    }

    route.add(newStatus);
    return trip;
}

Quick is based on Apache Kafka. It organizes and stores event streams in topics. In our case, we have a vehicle topic containing the vehicle name and range as well as a status topic for the emitted status events. We can process such event streams with the help of Kafka Streams. For example, we can accumulate status events with the same trip id into a trip. We simply group the incoming status events by their trip id and append them to a list. The result is written into the trip topic.

You can find the full code in our repository. The Kafka Streams application is written with our streams-bootstrap library, which, among others, offers sensible defaults and reduces the required boilerplate code. Of course, you are not limited to simple aggregation. With Kafka Streams you can also build more advanced applications. One could for example build a predictive maintenance service with it.

GraphQL Schema

type Subscription {
    statusUpdates: Status @topic(name: "status")
}

type Status {
    statusId: String
    tripId: String
    vehicleId: String
    position: Position
    batteryLevel: Int
    distance: Int
    timestamp: Int
}

type Position {
    lat: Float
    lon: Float
}

type Query {
    trip(id: String): Trip
}

type Trip {
    id: String!,
    vehicleId: String!,
    route: [Status]
}

Having our topics defined, we start by modeling the data required in the dashboard. Quick’s querying logic is built upon the data query language GraphQL. It allows us to create a global schema of our data and the supported operations. Subscriptions are one type of such operations, which allow us to consume real-time updates of the data through websocket connections. The first snippet shows an exemplary GraphQL schema for live updates of the emitted status events. With that, we have a subscription operation called statusUpdates that we can use to get live updates of Status events. The second snippet shows how a Status looks like.

Besides the live updates, we also require access to a single trip. A trip is the accumulation of all statuses with the same trip id. As we want to query this information on demand, subscriptions do not work in this case. GraphQL offers the Query operation instead. The third snippet shows a query called trip that allows us to pass an id as an argument and returns the corresponding Trip.

Connecting Apache Kafka and GraphQL

type Query {
    trip(id: String): Trip @topic(name: "trip", keyArgument: "id")
}

type Trip {
    id: String!,
    vehicleId: String!,
    vehicle: Vehicle @topic(name: "vehicle", keyField: "vehicleId")
    route: [Status]
}

type Vehicle {
    id: String!,
    name: String!,
    maxRange: Int!
}

Quick introduces a custom GraphQL directive called @topic. It allows you to annotate fields and connect them to a topic. With that, we can define the relationship between our GraphQL Schema and Kafka. We first connect the statusUpdates subscription to the status topic. It ensures that each event written to the Kafka topic is pushed into the GraphQL websocket connection.

Second, we want to display information about a vehicle when querying a trip. Instead of creating a separate operation, we can add this information to Trip itself: Trip has a new field vehicle. It populated with the data from the vehicle topic based on the value of the trip’s vehicle id field. One major advantage of GraphQL is its flexibility. When querying a trip, the user can decide if they indeed require the vehicle information. If this is not the case, the corresponding data is never loaded and thus no overhead occurs.

Setting-Up Quick & Gateways

quick context create --host $HOST --key $KEY

quick gateway create car-sharing
quick gateway apply car-sharing -f ./quick/schema.graphql

We are ready to process and query our data. We start by setting up our Quick instance. First, we initialize the Quick CLI, which requires a base URL and an API-Key. Second, we create a new gateway and apply our GraphQL schema.

Start Kafka Streams Application

quick topic create vehicle -k string \
  -v schema --schema car-sharing.Vehicle
quick topic create trip -k string \
  -v schema --schema car-sharing.Trip
quick topic create status -k string \
  -v schema --schema car-sharing.Status

quick app deploy trip-aggregator \
 --registry us.gcr.io/d9p-quick/demo \
 --image trip-aggregator \
 --tag latest \
 --args input-topics=status output-topic=trip

First, we create all required topics. The command expects the topic name as well as the type or schema of key and value. Since we have complex values, we define a GraphQL schema. Then, we can start our Kafka Streams application. Quick supports running dockerized applications.

Go Live

curl -X POST --url $HOST/ingest/vehicle \
    --header 'content-type: application/json' \
    --header 'X-API-Key:$KEY' \
    --data "@./data/vehicles.json"

subscription {
  carSharing {
    statusId
    tripId
    vehicleId
    position {
      lat
      lon
    }
    batteryLevel
    distance
    timestamp
  }
}

When all resources are up, we can start to ingest data into our system. Quick supports the ingest through a REST-API. For example, the first snippet shows a command ingesting new vehicles into the vehicle topic. When cars are ingesting their status events into the system, we can start to use our query and subscribe operations. For example, we can run a subscription with these results:

statusId	tripId	vehicleId	latitude	longitude	batteryLevel	distance	timestamp
drj02vln8nwvwp5goc	2i8wnx	o0338h	13.422029	52.50517	75	24942	1616808550
271m5qzgno3lrh0bn6	blnd1l	eikegb	13.293791	52.54985	75	26312	1616808550
02xhrscvc6o0vijyk8	jkehob	jis2t3	13.262929	52.54061	86	33972	1616808550
8clm8g1cu50tasdje8	5vfevl	uae6rs	13.454952	52.48825	79	50281	1616808550
ru3bcvq4t08rko7n4i	vkzhze	2vn7p2	13.424133	52.485806	70	118558	1616808550
h27j9qbpnim6v1l62x	x7rsxx	xc9bwi	13.411969	52.54107	54	147317	1616808550
k77v3tnu38n14n9unu	6a8t0o	bkoi9p	13.505628	52.57557	82	29753	1616808550
f0so763cwocqmronef	mikdho	1sjhjr	13.285142	52.49432	41	168217	1616808550
367iyqn9x7xcls7lwv	f4ialb	06zmlu	13.351915	52.472813	67	69773	1616808550
kqtlcsiz08cjxjhk3h	mdoh37	wu3qia	13.293555	52.536884	45	172664	1616808550
oxi6tmcg9kied6svuc	uwz5xq	3q0q0d	13.398802	52.572403	47	102869	1616808550
9rodzbkwqllqqbc3d3	voxul7	v6k3ou	13.444397	52.46356	91	9592	1616808551
…

Query a single trip

{
  trip(id: "jvae2u") {
    id
    vehicle {
      name
      maxRange
    }
    route {
      statusId
      position {
        lat
        lon
      }
      statusId
      distance
      timestamp
    }
  }
}

{
  "data": {
    "trip": {
      "id": "jvae2u",
      "vehicle": {
        "name": "BMW i3",
        "maxRange": 396
      },
      "route": [
        {
          "statusId": "qw05eq3h8ct4x7q2p0",
          "position": {
            "lat": 13.393371,
            "lon": 52.52579
          },
          "distance": 180625,
          "timestamp": "1616789646"
        },
        [...]
        ,
        {
          "statusId": "oebajab2xrgvdgo30d",
          "position": {
            "lat": 13.426252,
            "lon": 52.534878
          },
          "distance": 184009,
          "timestamp": "1616790087"
        }
      ]
    }
  }
}
